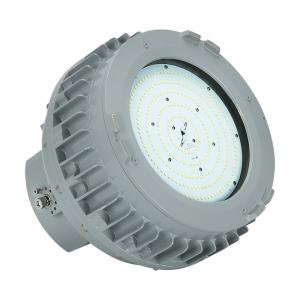

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

Name: 20200W Explosion Proof Flood Light Fixtures 2200k7000k S Series For Oil And Gas
Brand: CODT
Price: 1 USD

China 20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas wholesale

Brand Name : CODT

Model Number : EX-20~200-S

Certification : ATEX, IECEx,ETL,API,ABS

Place of Origin : CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-20days

Packaging Details : carton box standard, check the specification

Material : Copper-free aluminum

power : 20,40,60,80,100,150,200

Item type : Explosion-proof lights

Ip rating : 66

Input voltage(v) : AC100-277V/ AC200-480V

Color temperature(cct) : 2200k-7000k

Contact Now

Atex Approved Lights For Oil And Gas Explosion Proof With 3 Hours Battery 20-200w Explosion Proof Lighting S series

Certifications:

ATEX Marking:

Ex db IIC T6/T5/T4 Gb

Ex tb IIIC T80℃/T95℃/T130℃ Db

IECEx Marking:

Ex db IIC T6/T5/T4 Gb

Ex tb IIIC T80℃/T95℃/T130℃ Db

Ambient Temperature:

-40℃ to 60℃ (-40℉ to 140℉)

IP66

IK10

Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail • LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

Key Features:

High-quality SMT LED and Meanwell driver.

Heat and impact resistant glass lens.

Compact structure, small size and light weight for easy installation.

Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

High vibration and impact resistance.

Constructed of die-castining aluminum and epoxy powder coated, better corrosion resistance.

Additional Features:

Changeable light source and battery makes replacement super easy.

Beam angles are optional: 40°/60°/90°/120°.

5-year warranty.

Standard Materials:

Housing: Aluminum

Lens: Tempered glass

Hardware: Aluminum

Mounting Bracket: Aluminum/SUS 304

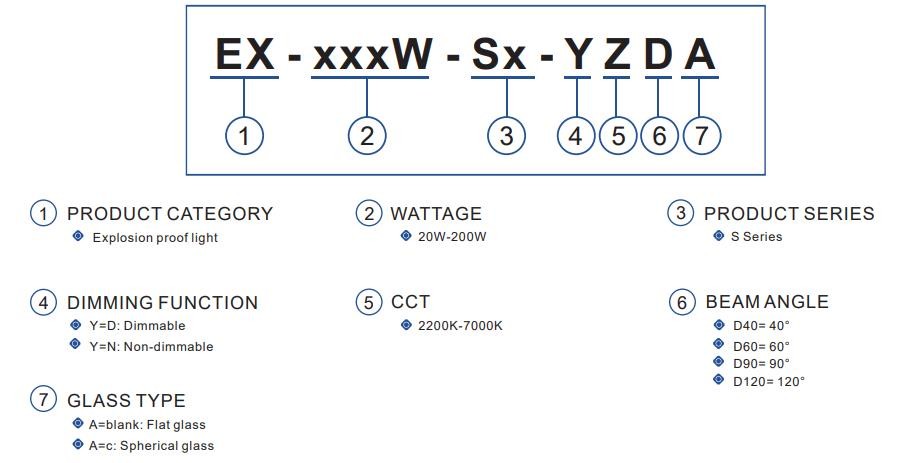

Catalog Number Logic:

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

Technical Data:

Model	Wattage	Operating Voltage	Total Lumens(Im)	Efficacy(Im/W)	CRI	CCT
EX-20W S1YZDA	20W	AC100-277V/220-480V	2800	140	>70	2200k-7000k
EX-40W S1YZDA	40W	AC100-277V/220-480V	5600	140	>70	2200k-7000k
EX-60W S1YZDA	60W	AC100-277V/220-480V	8400	140	>70	2200k-7000k
EX-80W S1YZDA	80W	AC100-277V/220-480V	11200	140	>70	2200k-7000k
EX-100W S2YZDA	100W	AC100-277V/220-480V	14000	140	>70	2200k-7000k
EX-150W S2YZDA	150W	AC100-277V/220-480V	21000	140	>70	2200k-7000k
EX-200W S2YZDA	200W	AC100-277V/220-480V	28000	140	>70	2200k-7000k

Packing Information:

Model	Quantity/Carton	Packing Size	Net Weight(kg)	Gross Weight(kg)
EX-xxxW SxYZDA	1 PCS	18.1119.2911,42	12.5	15

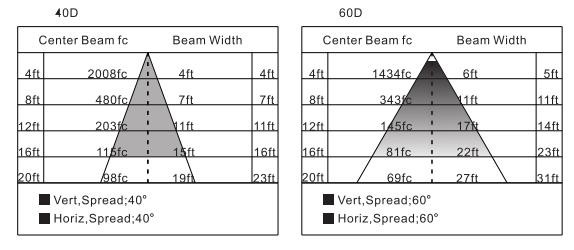

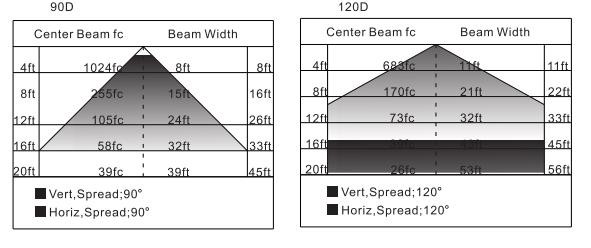

Photometry:

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

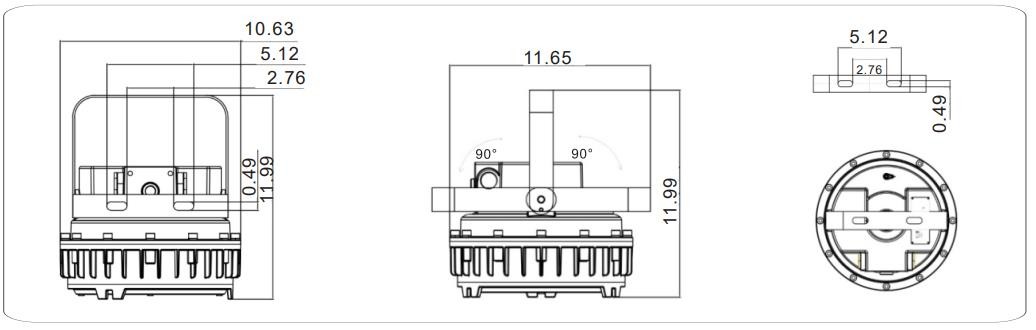

Dimensions:

Option A: Flat glass

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

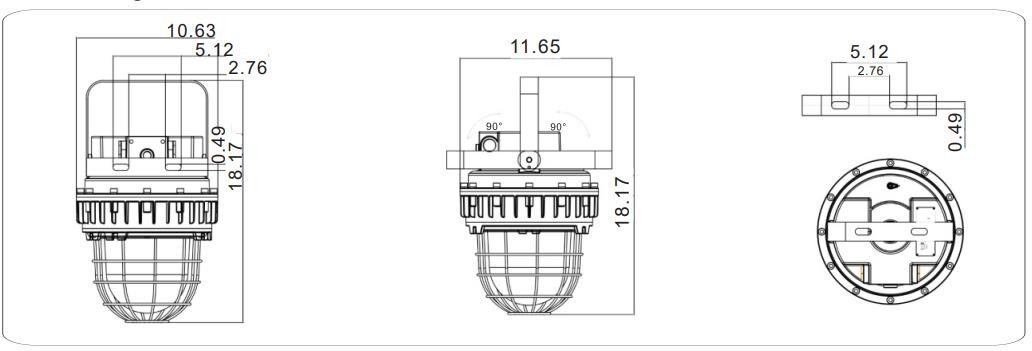

Option B: Globe glass

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

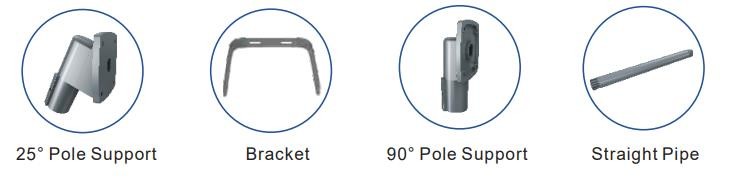

Accessaries & Mounting:

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

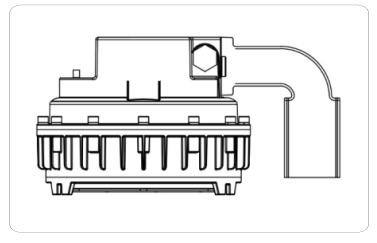

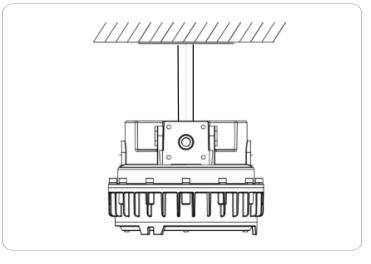

Pole Mounting

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

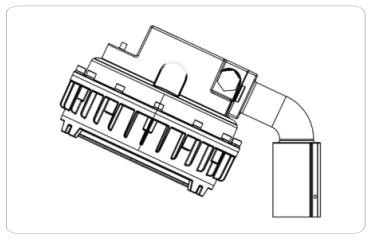

25° Pole Mounting

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

Pendant Pole Mounting

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

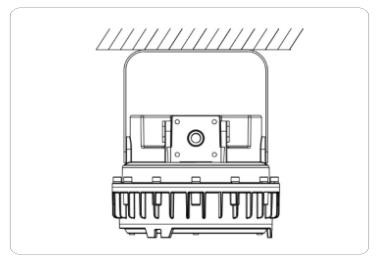

Bracket Surface Mounting

20-200W Explosion Proof Flood Light Fixtures 2200k-7000k S Series For Oil And Gas

Q1. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q2. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional
